Inverter and Step-Up Integrated Box Substation

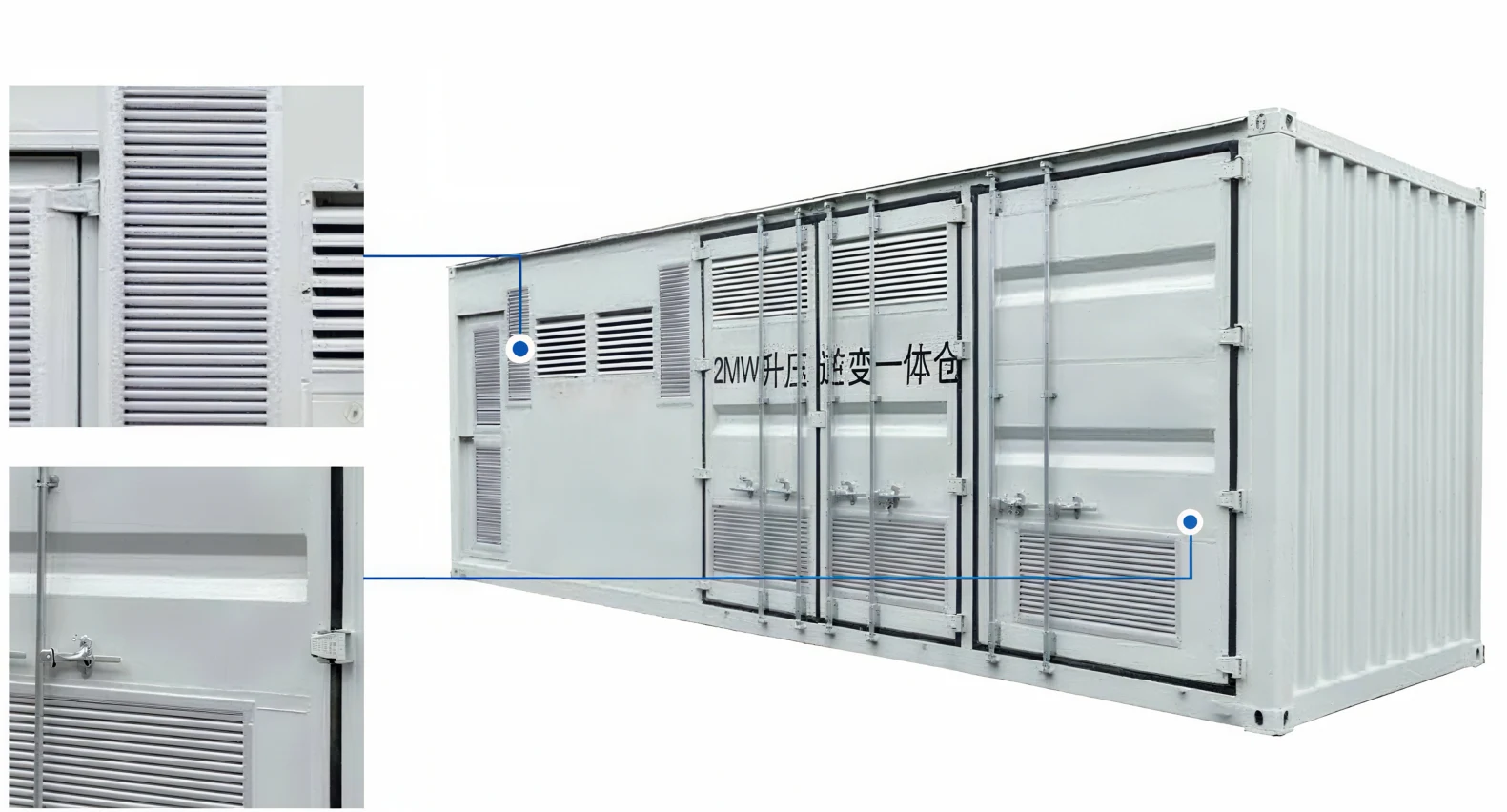

An integrated inverter and step-up box-type substation combining conversion and voltage boosting in one enclosure.

Technical Data

Product Features & Applications

The industry pain points lie in the scattered layout of traditional power conversion and boosting equipment, the cumbersome operation and maintenance, and the high energy consumption. Your problem is that the equipment has poor adaptability and the procurement and installation costs are extremely high. Our solution is to introduce the Inverter and Booster Integrated Box-Type Substation, which integrates the core functional modules. The actual effect can achieve a 30% reduction in floor space, a 50% increase in operation efficiency, and a significant reduction in overall costs. This product is the core distribution equipment in the fields of photovoltaics and Energy Storage, which can connect to Combined Photovoltaic Substations, meet the flexible matching requirements of Oil Immersed Transformers and Dry Type Transformers, integrate the core functions of Electric Power Converter and High And Low Voltage Switchgear, replace the traditional scattered equipment combinations, and be widely applied in industrial parks, photovoltaic power stations, and remote power supply areas, achieving efficient conversion, boosting, and stable transmission of electric energy, with advantages of energy saving, convenience, and safety, providing a high-performance and cost-effective integrated distribution solution for purchasers.

Product Features (Key Extracts)

1.Highly integrated and cost-effective: No need to separately purchase separate devices such as Electric Power Converter and High and Low Voltage Switchgear. The integrated design reduces equipment connection losses. Compared with the traditional Box Type Substation configuration, the procurement and installation costs are reduced by more than 25%, enabling rapid deployment in various scenarios.

2. Strong adaptability and greater flexibility: According to project requirements, Oil Immersed Transformer or Dry Type Transformer can be flexibly combined. It can meet the grid connection requirements of Combined Photovoltaic Substations without additional modifications, and is suitable for different voltage levels and power requirements.

Purchasing and Usage Tips

When making the purchase, it is necessary to clearly specify the type of transformer (Oil Immersed Transformer or Dry Type Transformer) and power parameters required for the project to avoid any issues due to incorrect model selection. You can communicate with us in advance about the on-site conditions to obtain customized suggestions.

2. The key points of daily maintenance include checking the equipment's cooling system to prevent operational instability due to high temperatures. Core component inspections are conducted every six months, and basic maintenance can be completed through simple operations without the need for a professional team.

FAQ (Frequently Asked Questions)

Q1: Compared with the traditional Box Type Substation, what are the core advantages of this product?

A1: The core advantage is high integration. It integrates functions such as Inverter, Booster, High and Low Voltage Switchgear, etc., without the need to deploy multiple devices separately. It occupies less space, installs faster, and reduces energy consumption by 15% – 20%, making operation and maintenance more convenient.

Q2: Is the product maintenance difficult? Does it require professional operation?

A2: The maintenance is not difficult. Daily maintenance only involves checking the cooling system, wiring, and the operating status of the equipment. Basic maintenance does not require professional qualifications. If there is a malfunction, we offer 7×24-hour technical support. We can remotely guide the troubleshooting and, if necessary, arrange engineers to handle it on-site.

Q3: What are the product after-sales guarantees?

A3: The warranty period is one year. During the warranty period, core components that are not damaged by human factors will be replaced free of charge. We also provide lifetime technical consultation and maintenance guidance. Based on the procurement needs, we can customize extended warranty services to completely address the after-sales concerns of the purchasers.
