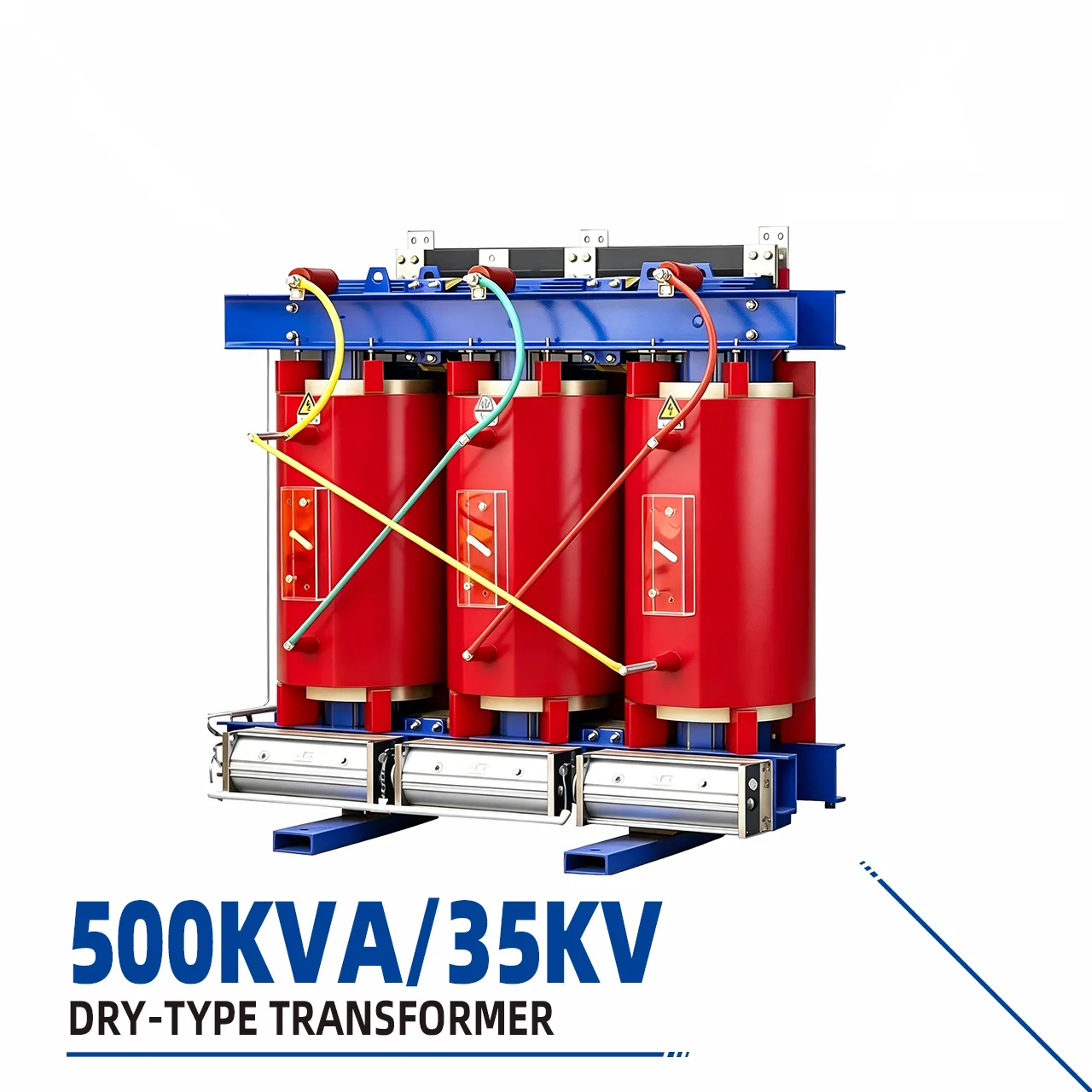

500KVA 35KV dry-type transformer High Performance

500 kVA, 35 kV dry-type transformer in the SC (B) 14 Type Dry Power Transformer series. High-performance variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

500KVA 35KV High Performance Dry-Type Transformer – Industrial Power Voltage Stabilizer



In the current power transmission and distribution industry, traditional transformer equipment generally suffers from poor fire and moisture resistance, high maintenance costs, and limited applicability. Many companies face challenges such as unstable power supply in outdoor and indoor industrial settings and high failure rates of aging equipment. To address these issues, our factory has launched the 500KVA 35KV High Performance Dry-Type Transformer. Utilizing epoxy resin casting technology and refined structural design, it creates a highly stable, low-loss dry-type transformer. This product is perfectly compatible with various industrial power supply systems and is often used in conjunction with Oil Immersed Transformers. It is also compatible with Box Type Substations and High And Low Voltage Switchgear systems, and can be used with Electric Power Converters and Combined Photovoltaic Substations to achieve photovoltaic power voltage stabilization and conversion. It is widely used in factory production, photovoltaic power generation, urban power distribution, and industrial and mining infrastructure. After being put into use, the equipment effectively avoids safety hazards such as oil leaks and spontaneous combustion, significantly reduces the frequency of equipment failures, continuously ensures stable power transmission, and reduces maintenance and equipment replacement costs for enterprises in the long term.



Compared to traditional power transmission equipment, this 500KVA 35KV high-performance dry-type transformer eliminates the drawbacks of oil-immersed equipment, eliminating oil pollution and the need for frequent oil changes and maintenance. Its insulation and heat dissipation performance are significantly upgraded. With a rated capacity of 500KVA and a withstand voltage of 35KV, the equipment is suitable for medium and high voltage power transmission requirements, has strong overload capacity, and can operate continuously and stably for extended periods. Whether in enclosed indoor distribution rooms or complex conditions such as outdoor photovoltaic power stations and industrial plants, it can be adapted to the coordinated operation of complete sets of power equipment, balancing safety, economy, and practicality, making it a core preferred equipment for industrial power upgrades and transformations.



Core Product Features

1. Safe, Explosion-proof, and Pollution-free: Unlike Oil-Immersed Transformers, this Dry-Type Transformer uses no insulating oil, eliminating the risks of oil leakage, fire, and explosion. It produces no pollutants during operation and is suitable for enclosed, personnel-intensive power operation scenarios.

2. Low Loss, High Efficiency, and Strong Adaptability: The equipment uses high-permeability silicon steel sheets, resulting in no-load and load losses far below industry standards. It can precisely match Box Type Substations and High and Low Voltage Switchgear systems, while also adapting to the power conversion and photovoltaic power distribution needs of Electric Power Converters and Combined Photovoltaic Substations.



Usage Tips

1. Ensure proper ventilation in the cabinet during installation, keeping it away from corrosive gases and dust accumulation environments. This can effectively extend the equipment’s lifespan and ensure stable substation efficiency.



Frequently Asked Questions (FAQ)

Q1: Can this 35KV dry-type transformer be used with photovoltaic power station equipment?

A1: Yes, it is perfectly compatible. The equipment can be used with Combined Photovoltaic Substations and Electric Power Converters to stabilize, transform, and transmit photovoltaic power, meeting the power distribution upgrade needs of small and medium-sized photovoltaic power plants.



Q2: What are the advantages of this product in daily maintenance compared to oil-immersed transformers?

A2: Compared to oil-immersed transformers, this dry-type transformer does not require regular inspection or replacement of insulating oil. Only quarterly cleaning of surface dust and inspection of wiring terminals are needed, resulting in a simpler maintenance process, lower costs, and shorter downtime.



Q3: What complete sets of power equipment can the equipment be used with?

A3: The equipment has extremely high compatibility and can be directly paired with Box-type Substations and High and Low Voltage Switchgear to form a complete power distribution system, suitable for most power scenarios such as industrial plants, municipal power distribution, and new energy power plants.



Q4: What after-sales services are included in the product warranty?

A4: The products undergo full-scale pressure and load testing before leaving the factory, and provide standard warranty services. We support a full range of after-sales services, including on-site installation guidance, fault diagnosis and repair, and technical consultation, to quickly resolve equipment operation and compatibility issues.
