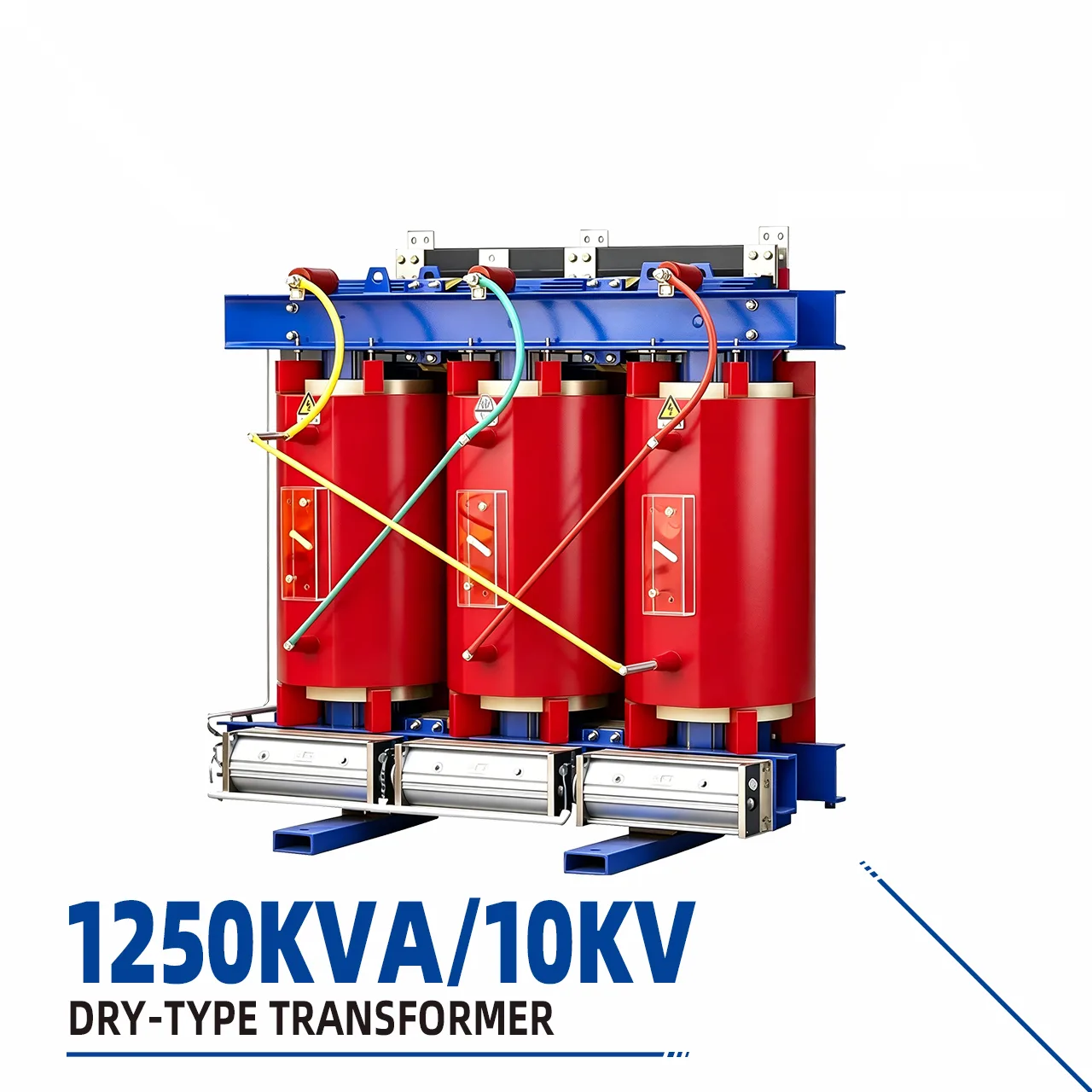

1250KVA 10KV dry-type transformer Pure copper

1250 kVA, 10 kV dry-type transformer in the SC (B) 14 Type Dry Power Transformer series. Copper-winding option listed. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

1250KVA 10KV Pure Copper Dry-Type Transformer: Stable Power Supply Equipment for Industrial Power Distribution



Currently, in the power distribution industry, oil-immersed transformers suffer from common pain points such as weak fire and explosion protection performance and poor environmental adaptability. Many enterprises face significant power supply safety hazards in their factories and cumbersome equipment maintenance. To address these issues, we have launched the 1250KVA 10KV Pure copper Dry-Type Transformer. Utilizing pure copper winding technology and a dry-cast structure, it is suitable for various industrial power distribution scenarios. This product completely avoids the oil leakage and explosion risks of traditional oil-immersed equipment, making it suitable for harsh environments such as indoor spaces, densely populated factory areas, and photovoltaic power stations. It can be used with Box Type Substations, High And Low Voltage Switchgear, and Electric Power Converters, and is also perfectly compatible with power distribution systems using Combined Photovoltaic Substations. This effectively improves power transmission stability, reduces equipment failure probability and long-term maintenance costs, and provides safe and Reliable Power Supply for industrial production and new energy power generation.



This 10KV 1250KVA pure copper dry-type transformer is a core piece of equipment for industrial power distribution. Its core is wound with all-pure copper coils, offering excellent conductivity and lower losses. Compared to conventional aluminum-core equipment, power transmission efficiency is significantly improved, and energy consumption is kept at an industry-low level. The equipment adopts an oil-free dry-type structure, eliminating the need for insulating oil for heat dissipation. It boasts advantages such as flame retardancy, explosion-proof properties, and zero pollution. During operation, there is no leakage or open flame hazard, making its safety far superior to traditional oil-immersed equipment. It is widely used in factories, commercial complexes, rail transit, and photovoltaic power stations, and can work in conjunction with various high and low voltage Power Distribution Equipment. It is suitable for fixed, long-term power supply conditions and is the preferred equipment for modern, safe power distribution systems.



Core Product Features

1. Low Energy Consumption from Pure Copper Windings: The equipment uses 100% pure copper coils, resulting in high conductivity and low resistance loss. Long-term operation leads to lower energy consumption, effectively reducing enterprise electricity costs. Simultaneously, the coils have strong anti-oxidation and anti-aging properties, significantly extending the equipment’s service life.



Practical Maintenance Tips

1. Precise Selection for Suitable Scenarios: This dry-type transformer is suitable for indoor and enclosed power distribution spaces. It is strictly prohibited to use it as a substitute for the outdoor-grade Oil-immersed Transformer. When installed with a Box Type Substation, a reasonable ventilation gap must be reserved to ensure heat dissipation.



Frequently Asked Questions (FAQ)

Q1: Is this pure copper dry-type transformer suitable for photovoltaic power station distribution systems?

A1: Fully compatible. The equipment can perfectly match Combined Photovoltaic Substations, Electric Power Converters, and other new energy equipment, adapting to photovoltaic grid-connected power distribution conditions. It operates stably and can meet the long-term uninterrupted power supply needs of new energy power stations.



Q2: Is daily maintenance of the equipment cumbersome? Does it require regular replacement of the insulation medium?

A2: No need to replace the insulating oil or other media. Unlike oil-immersed equipment, the Dry Type Transformer uses a solid insulation structure. Daily maintenance only requires cleaning the surface dust and checking the tightness of the wiring terminals. Maintenance is simple and cost-effective.



Q3: Can the equipment be used with high and low voltage switchgear?

A3: Yes. The equipment parameters are compatible with mainstream High and Low Voltage Switchgear and prefabricated substation equipment, offering strong compatibility and quick integration into the entire power distribution system. Installation and commissioning are convenient.



Q4: What after-sales services are included?

A4: The equipment provides standardized warranty services, supporting factory testing, on-site installation guidance, technical troubleshooting, and other after-sales support. We assist customers throughout the entire process of resolving various issues during equipment operation and maintenance.
