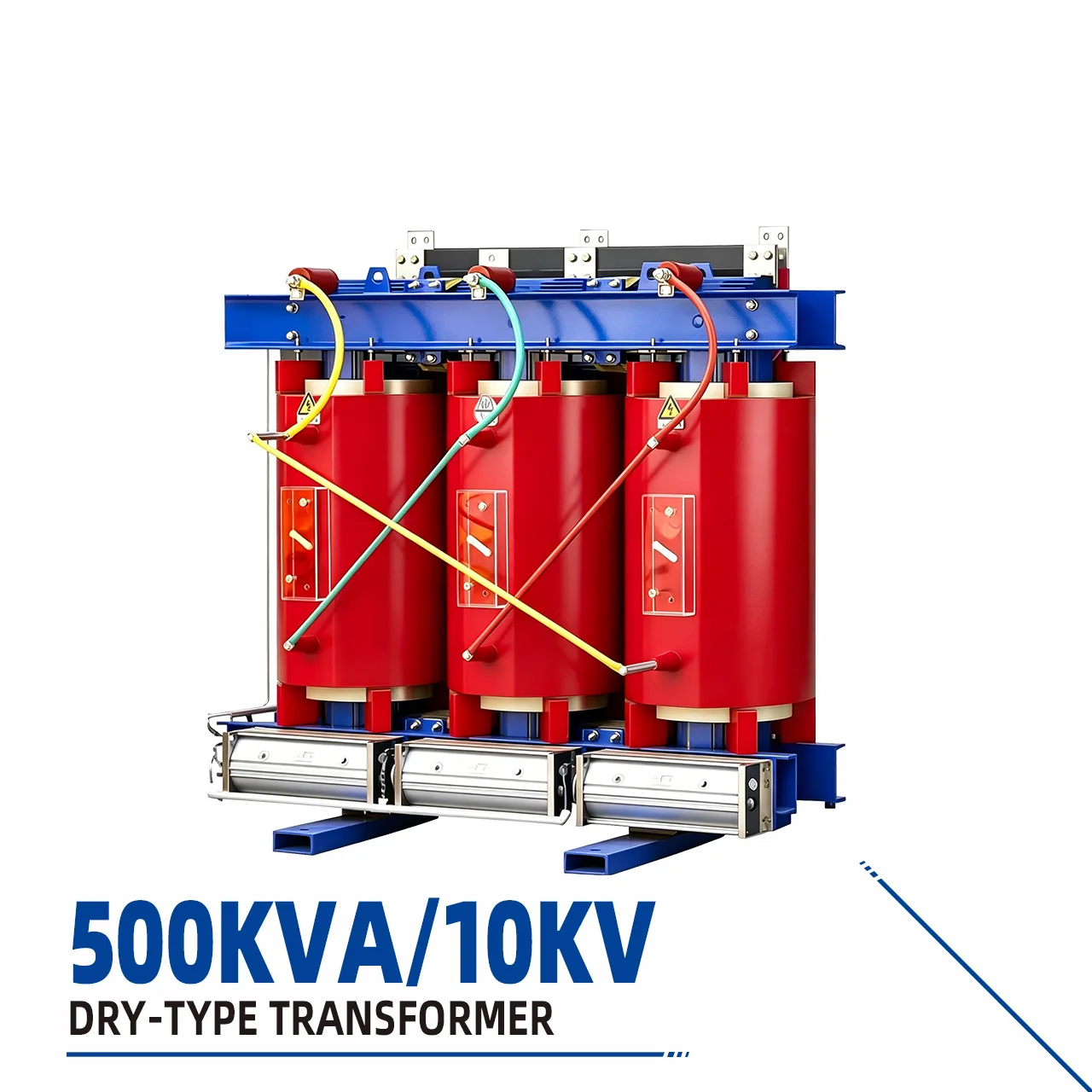

500KVA 10KV dry-type transformer Low Loss

500 kVA, 10 kV dry-type transformer in the SC (B) 14 Type Dry Power Transformer series. Low-loss variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

500KVA 10KV Low-Loss Dry Type Transformer, Adaptable to Multiple Power Transmission and Distribution Scenarios



In traditional power distribution scenarios, oil-immersed transformers pose fire hazards and impose significant limitations on site layout. Many projects face challenges such as high energy consumption and continuously rising electricity costs over long-term operation. We have launched a 500KVA 10KV low-loss dry type transformer, specifically optimized for core structure and winding technology. After deployment, the equipment’s no-load loss is significantly reduced, leading to continuous reductions in electricity costs over the long term. Its operational stability meets the continuous power supply needs of factories, photovoltaic systems, and commercial buildings.



This 500KVA 10KV low-loss dry type transformer, as a core transformer, is often assembled with a high-and-low voltage switchgear and can also be integrated into a box-type substation. Compared to conventional transformers, it does not require oil as an insulating medium, offering superior safety and making it ideal for indoor power distribution environments and integrated photovoltaic substation projects. This equipment can stably match various Electric Power Converters, completing voltage level conversions and ensuring the stable operation of the entire power system. It is widely used in industrial and commercial parks, photovoltaic power plants, urban complexes, and other locations, handling both short-term project power supply and long-term continuous power distribution tasks.



Product Features

Low-loss design: Optimized magnetic circuit structure continuously reduces no-load and load losses, achieving energy savings over many years of operation.

Safe and leak-free: Unlike oil-immersed transformers, the dry-type structure contains no flammable insulating oil, allowing for safe deployment even in enclosed indoor environments.



Tips

Allow sufficient ventilation space at the equipment installation location to avoid increased operating losses due to continuous high temperatures.



FAQ

Q:Can this Dry Type Transformer be directly placed inside a Box Type Substation?

A: Yes. After verifying the enclosure dimensions and ventilation conditions, a complete set can be assembled, paired with a High And Low Voltage Switchgear to form a complete power distribution unit.



Q:What are the main aspects of routine maintenance?

A: Regularly clean surface dust, check terminal temperature, and monitor operating temperature rise. No insulation oil replacement is required, making maintenance simple.



Q:Can it be used in conjunction with Combined Photovoltaic Substations and Electric Power Converters?

A: The product’s voltage parameters are compatible with photovoltaic power distribution systems, enabling it to work with power conversion equipment to achieve voltage regulation and transmission of electricity, making it suitable for distributed photovoltaic projects.



Q:How is the equipment warranty period agreed upon? How are malfunctions handled?

A: Warranty service is provided according to industry standards. Our technical team will remotely troubleshoot problems first, and for major malfunctions, on-site technical support can be coordinated.
