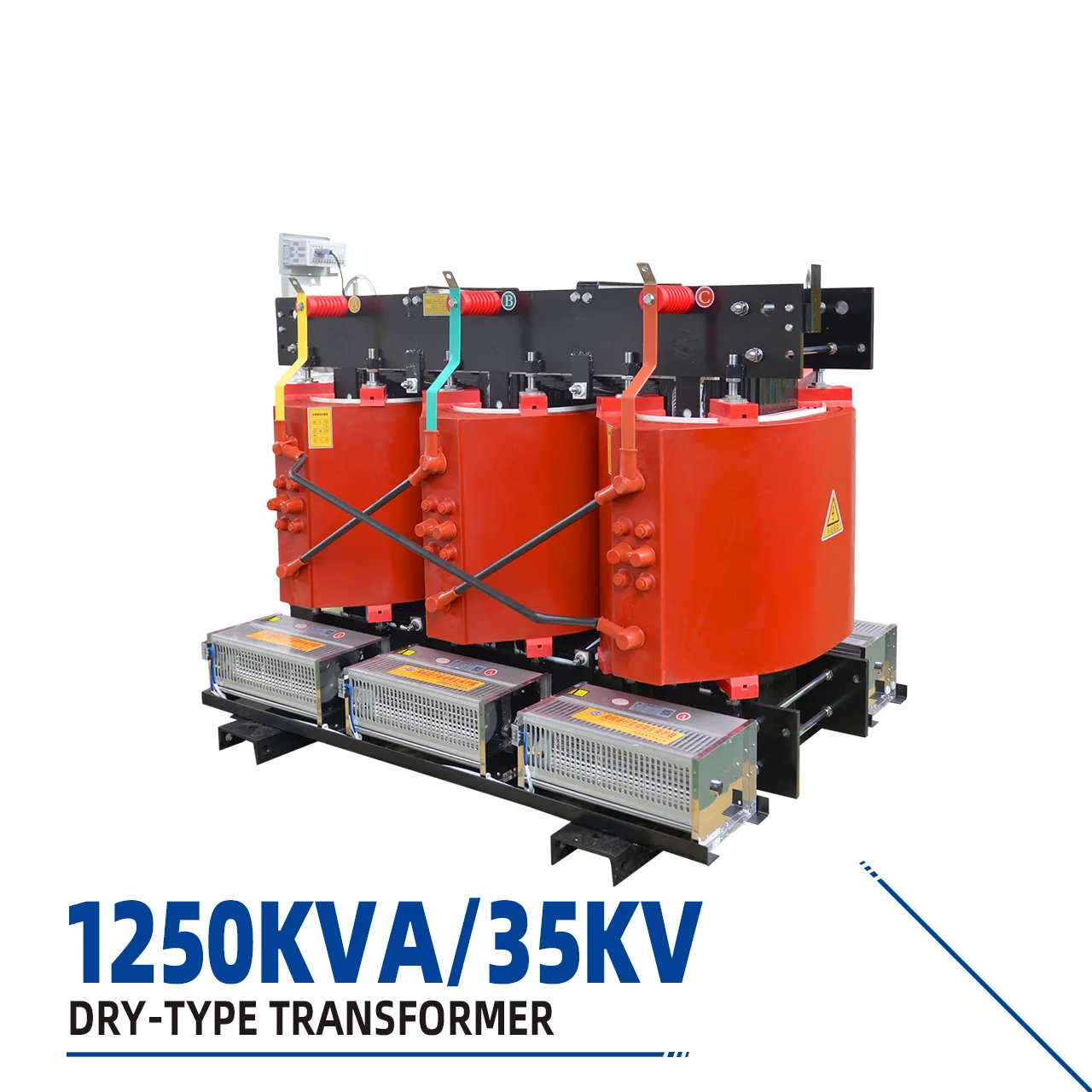

1250KVA 35KV dry-type transformer Low Loss

1250 kVA, 35 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. Low-loss variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

1250KVA 35KV Low-Loss Dry-Type Transformer: Energy-Saving Solution for Industrial Power Distribution



In the current power distribution industry, high energy consumption and insufficient operational stability of traditional transformer equipment are common pain points. Many industrial and mining enterprises and photovoltaic power plant users often face the challenges of high equipment maintenance costs and poor adaptability to various operating conditions. To address these issues, this 1250KVA 35KV Dry-Type Transformer adopts a new low-loss core and optimized winding technology, precisely adapting to medium and high-voltage power distribution scenarios. The equipment effectively reduces no-load and load losses, significantly reducing energy consumption compared to conventional equipment. It also boasts advantages such as fire resistance, flame retardancy, and minimal maintenance. It is perfectly compatible with Box Type Substations and High And Low Voltage Switchgear, and is widely used in industrial plants, photovoltaic power plants, and urban power distribution networks. It can also be networked with Electric Power Converters and Combined Photovoltaic Substations to replace traditional high-energy-consuming Oil Immersed Transformers, providing users with the core value of long-term energy saving, efficiency improvement, and safe and stable power supply.



This product is a 35KV medium-high voltage dry-type transformer with a rated capacity of 1250KVA. It eliminates the oil leakage and explosion hazards of traditional oil-immersed equipment. With its epoxy resin cast insulation structure, it possesses excellent environmental adaptability and can operate stably for extended periods in enclosed indoor and outdoor power distribution spaces. The core of the equipment features an optimized low-loss design, effectively solving the industry problem of excessively high energy consumption over long-term operation. It is suitable for diverse scenarios such as new energy photovoltaic systems, industrial production, and municipal power distribution, making it a core energy-saving transformer in high and low voltage complete power distribution systems.



Core Product Features

1. Ultra-low Energy Consumption Performance: Utilizing a high-permeability silicon steel sheet core structure and optimized winding arrangement, the overall loss of the equipment is far lower than industry standards. Long-term continuous operation can significantly reduce enterprise power consumption, making it suitable for power distribution scenarios with long-term operation, such as large factories and photovoltaic power stations, resulting in significant energy savings.



Practical Maintenance Tips

1. Environmental Adaptation and Management: The power distribution space must be kept well-ventilated and dry during equipment operation to prevent the accumulation of dust and corrosive gases. When used in conjunction with a High and Low Voltage Switchgear system, the cabinet ventilation system should be checked regularly to significantly extend the equipment’s lifespan.



Frequently Asked Questions (FAQ)

Q1: Can this Dry Type Transformer be used with Combined Photovoltaic Substations for photovoltaic power plants?

A1: Yes, it is perfectly compatible. The product’s 35KV high-voltage level is suitable for centralized photovoltaic power distribution conditions and can stably link with photovoltaic substations and Electric Power Converter equipment. It is suitable for new energy power generation grid connection and voltage regulation distribution needs, demonstrating strong adaptability.



Q2: What are the differences in daily maintenance compared to an Oil Immersed Transformer?

A2: No need to replace insulating oil, no need to check oil level, and no risk of oil leakage. Daily maintenance only requires periodic cleaning of surface dust and checking the tightness of wiring terminals. The maintenance process is simple and cost-effective, making it suitable for long-term unattended power distribution scenarios.



Q3: What complete sets of Power Distribution Equipment is compatible with this device?

A3: It can be directly paired with Box Type Substations and High and Low Voltage Switchgears to form complete power distribution systems. It is also compatible with various power conversion equipment, suitable for most medium and high voltage power distribution scenarios such as industrial power distribution, new energy grid connection, and municipal power supply.



Q4: What is the after-sales warranty period for this equipment, and how is it handled in case of malfunction?

A4: The product offers long-term warranty service and undergoes full performance testing before leaving the factory. If any abnormalities occur during equipment operation, you can contact the manufacturer’s technical personnel for remote troubleshooting. For complex faults, comprehensive after-sales support including on-site repair and technical guidance is available.
