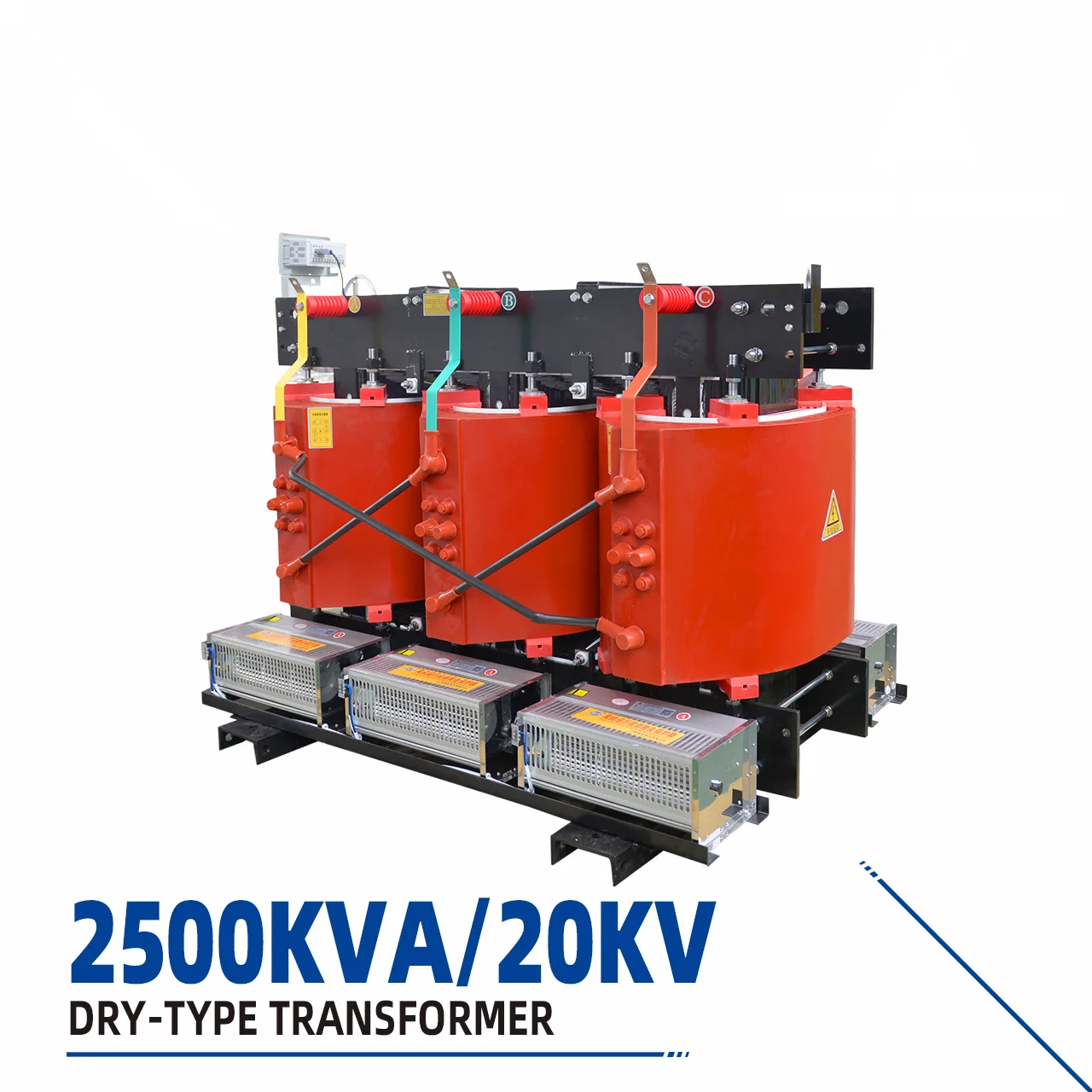

2500KVA 20KV dry-type transformer High Performance

2500 kVA, 20 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. High-performance variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

High-Performance 2500KVA 20KV Dry-Type Transformer, Industrial Power Voltage Stabilizer and Adaptor



In current high-voltage power distribution scenarios, traditional transformer equipment generally suffers from industry pain points such as poor fire and moisture resistance, high operating noise, and high maintenance costs. Many enterprises face significant safety hazards in factory power distribution, insufficient equipment adaptability, and high energy consumption of aging equipment. To address these issues, our factory has launched a high-performance 2500KVA 20KV Dry-Type Transformer. Utilizing a cast resin insulation process to optimize the equipment structure, it overcomes the drawbacks of traditional fuel-fired transformers and is suitable for various harsh industrial conditions. This product is primarily used for 20KV high-voltage substation stabilization in industrial and mining enterprises, photovoltaic power plants, municipal power distribution, and building power supply scenarios. It can complement and adapt to different power distribution needs with Oil Immersed Transformers, and can also be used with Box Type Substations and High And Low Voltage Switchgear to complete the entire power distribution system. Combined with Electric Power Converters and Combined Photovoltaic Substations, it enables stable transmission of renewable energy power, effectively improving the safety and stability of the power distribution system and significantly reducing equipment failure probability and subsequent maintenance costs.



This 2500KVA 20KV high-performance dry-type transformer is a core component of high-voltage power distribution systems. Unlike traditional substation equipment, this product adopts a fully enclosed insulation structure, eliminating the risk of fuel leakage. It boasts excellent flame-retardant and explosion-proof performance and can operate stably for extended periods in complex conditions such as indoor environments, high humidity, and high dust levels. The equipment’s rated capacity and high-voltage level are well-suited to the mainstream needs of large and medium-sized industrial production and new energy power distribution. It features precise voltage conversion and low transmission loss, providing stable power support for large production equipment, photovoltaic power distribution base stations, and municipal power networks. It is perfectly compatible with complete high and low voltage power distribution projects and integrated new energy power supply projects, making it the preferred replacement for traditional oil-immersed equipment and the best choice for upgrading industrial power distribution systems.



Core Product Features

1. Safe, Durable, and Low-Loss: The product uses high-quality cast resin insulation material, offering high insulation strength, flame retardancy, explosion-proof, moisture-proof, and dust-proof properties. This completely avoids the safety hazards of oil leakage and fire associated with oil-immersed transformers. It maintains stable performance under 20KV high-voltage operation, with power loss controlled to ultra-low industry standards, effectively saving enterprises’ electricity costs in the long term.



Usage Tips

1. Compatible Installation: The equipment can be installed with a Box Type Substation and High And Low Voltage Switchgear to form an integrated power distribution system. When connecting to Electric Power Converters and Combined Photovoltaic Substations, voltage parameters must be calibrated in advance to ensure power transmission compatibility.



Frequently Asked Questions (FAQ)

Q1: What scenarios is this 2500KVA 20KV dry-type transformer suitable for?

A1: The product has a wide range of applications, including industrial power distribution in factories, municipal building power supply, photovoltaic and wind power new energy power stations, and complete substation projects in industrial parks. It can be used with various high and low voltage Power Distribution Equipment and new energy power distribution equipment, and is suitable for most 20KV high-voltage power distribution scenarios.



Q2: Is the daily maintenance of the equipment complicated, and are the maintenance costs high?

A2: Compared with oil-immersed transformers, this Dry Type Transformer eliminates the need for oil replacement and leakage repair. It has a simple structure, is dustproof and moisture-proof, and only requires periodic cleaning of surface dust and inspection of wiring ports. The maintenance process is simple, and the long-term operation and maintenance costs are extremely low.



Q3: What does the after-sales guarantee include?

A3: The product undergoes full performance testing before leaving the factory and provides a complete machine warranty service, including free repair of equipment quality problems, parts replacement, technical guidance for installation and commissioning, and other after-sales support. Professional technical consultation on later power distribution system adaptation and optimization is also provided.



Q4: Can it be adapted to complete sets of new energy photovoltaic power distribution equipment?

A4: It can be perfectly adapted. It can be used with Combined Photovoltaic Substations and Electric Power Converters to meet the needs of new energy power conversion and voltage stabilization. It is compatible with complete sets of power distribution equipment systems and has extremely strong adaptability.
