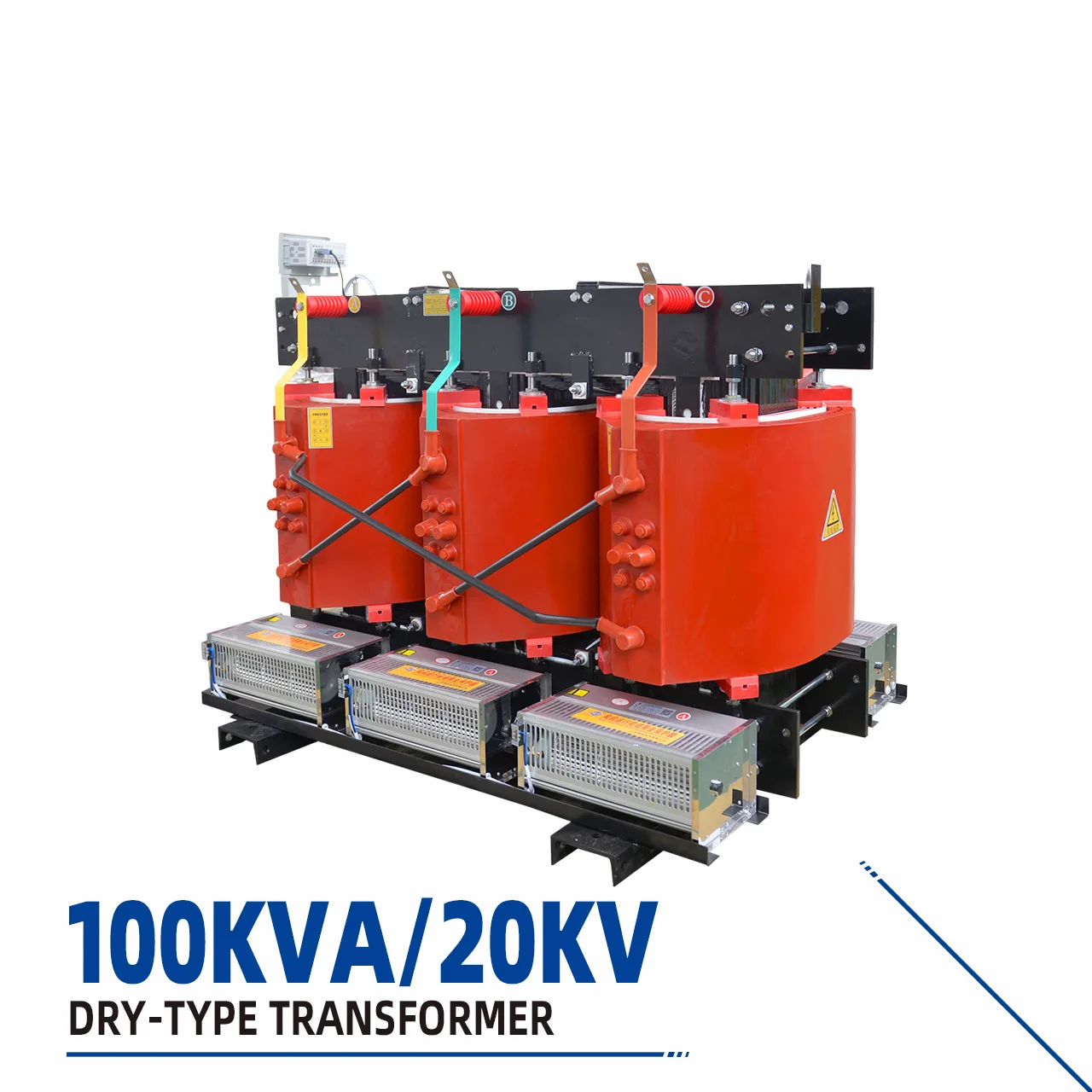

100KVA 20KV dry-type transformer High Efficiency

100 kVA, 20 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. High-efficiency variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

100KVA 20KV High Efficiency Dry Type Transformer



Using oil-immersed transformers in power plants can easily lead to fire safety hazards. Many indoor power distribution projects are constrained by site regulations, resulting in very limited equipment selection options. These projects face challenges such as stringent fire control measures and high subsequent operation and maintenance costs. We offer a 100KVA 20KV High Efficiency Dry Type Transformer as an alternative, effectively reducing long-term energy loss with its stable and efficient operation.



This Dry Type Transformer can be used in conjunction with a High And Low Voltage Switchgear. It can be integrated into Box Type Substations or used in conjunction with Electric Power Converters. It is also suitable for building internal transformer units in Combined Photovoltaic Substations. The product is widely used in commercial buildings, underground power distribution rooms, and new energy power generation projects. It eliminates the risk of oil leakage, is suitable for installation in enclosed spaces, significantly simplifies fire protection infrastructure construction, and continuously reduces operating expenses for power users.



Product Features

1.High-efficiency, low-loss winding technology ensures stable energy consumption under long-term load conditions, aligning with enterprises’ continuous energy reduction goals.

2.Excellent overall fire resistance eliminates the need for oil storage facilities, reducing site modification costs.



Tips

Properly plan ventilation channels during equipment installation; good heat dissipation extends the lifespan of the dry-type transformer’s insulation components.



FAQ

Q:Is this Dry Type Transformer suitable for use in underground substations?

A:Absolutely. The equipment poses no risk of leakage, its fire resistance meets underground substation regulations, and it can operate stably with proper ventilation.



Q:What are the differences in daily maintenance compared to an Oil Immersed Transformer?

A:No need for regular testing or oil replacement; daily maintenance only requires periodic dust cleaning and checking the tightness of wiring points, significantly reducing maintenance workload.



Q:Can it be integrated into a Box Type Substation for complete photovoltaic project setup?

A:Supports complete integration; it can be combined with High and Low Voltage Switchgear and Electric Power Converter to meet the construction needs of Combined Photovoltaic Substations.



Q:What does the product after-sales guarantee include?

A:The equipment enjoys a standard factory warranty. Within the warranty period, for non-human-caused defects, technical support and spare parts supply are provided, and remote commissioning services are also available.



Q:The office area is adjacent to the power distribution room. Will the operating noise meet standards?

A:The noise level of the basic model meets industry-standard levels. For locations with higher noise requirements, a customized noise reduction plan can be discussed in advance.
