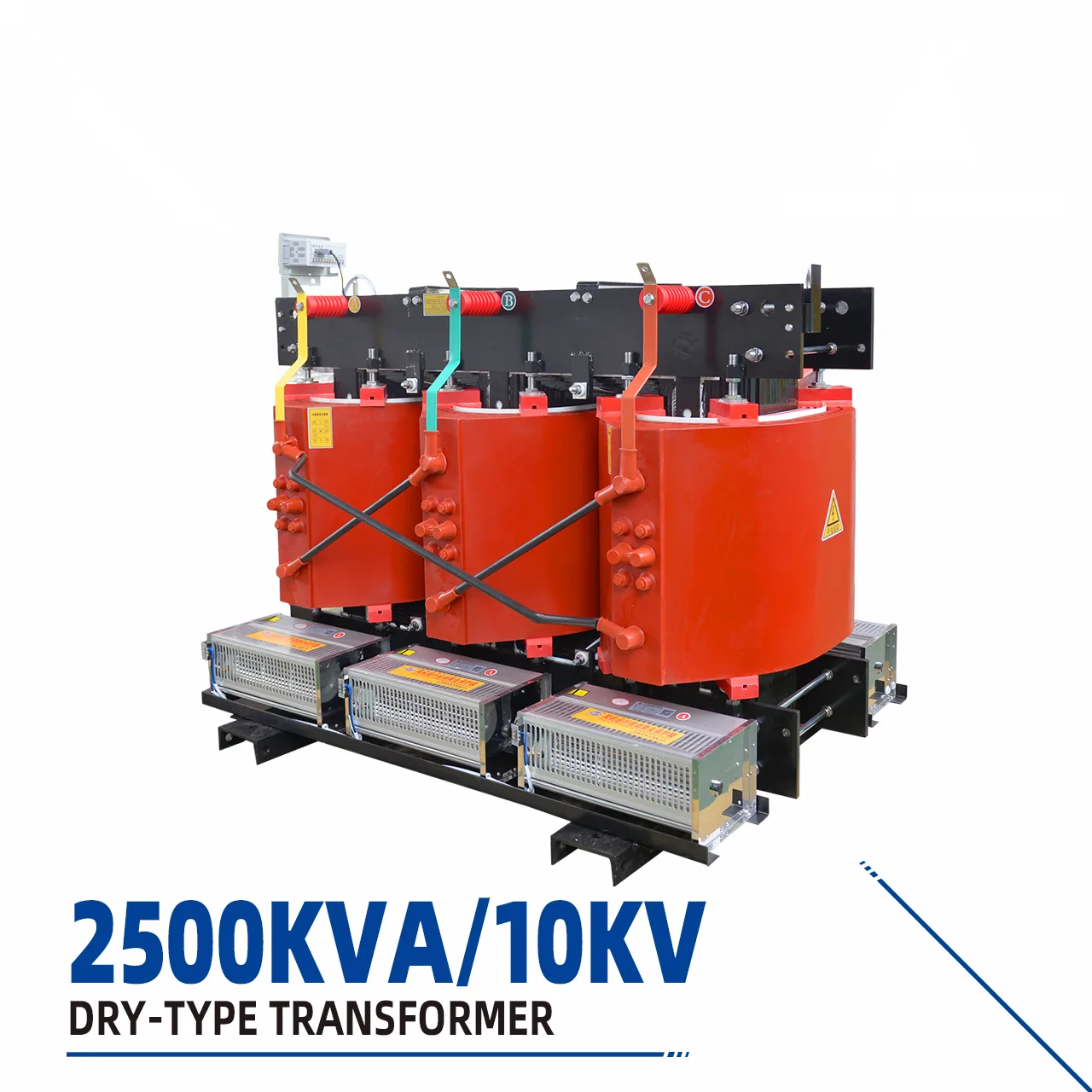

2500KVA 10KV dry-type transformer Low Loss

2500 kVA, 10 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. Low-loss variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

2500KVA 10KV Low Loss Dry Type Transformer: High-Efficiency Power Distribution Core Equipment



Traditional oil-immersed transformers used in power distribution projects often face challenges such as high losses and stringent fire safety requirements. Many project owners deploy Power Distribution Equipment in data centers, raising concerns about persistently high energy consumption and unmanageable maintenance risks. We offer the 2500KVA 10KV Low Loss Dry Type Transformer, which leverages an optimized core winding structure to reduce no-load and load losses. Once operational, this equipment continuously reduces long-term electricity costs and is suitable for various enclosed indoor power distribution scenarios. This dry type transformer is widely used in commercial complexes, industrial plants, and photovoltaic (PV) sites. It is often used in conjunction with high-and-low voltage switchgear to build power distribution systems and can also be integrated into box-type substations. In the power conversion stage of Combined Photovoltaic Substations, it works in conjunction with an Electric Power Converter to stably complete voltage transformation, ensuring stable and reliable power transmission. The equipment does not use insulating oil, eliminating the risk of oil leakage and fire. It boasts strong operational stability and meets the stringent standards of modern infrastructure for safe and energy-efficient power distribution equipment.



Product Features

Low Loss Design: As a low-loss dry-type transformer, the core and windings undergo refined process adjustments, resulting in lower long-term energy consumption and significantly reducing project-wide operating costs.

Reliable Safety and Protection: With no liquid insulating medium, it offers excellent fire resistance and eliminates the need for additional oil storage facilities, making it suitable for compact indoor power distribution layouts.



Tips

Ensure sufficient ventilation space during installation to promptly dissipate heat generated during operation and ensure stable output under rated conditions.



FAQ

Q:Is this 2500KVA 10KV Dry Type Transformer suitable for direct outdoor placement?

A: The standard model is recommended for indoor installation. For outdoor use, a dedicated protective casing is required to prevent continuous corrosion from rain and dust.



Q:Is there a significant difference in daily maintenance workload compared to an Oil Immersed Transformer?

A: No oil testing or insulation oil replacement is required. Regular surface cleaning is sufficient, simplifying the maintenance process.



Q:What is the after-sales response timeline for equipment malfunctions?

A: Upon receiving feedback, technicians will conduct remote troubleshooting immediately. For major malfunctions, on-site technical support can be coordinated, and original factory spare parts will be provided.



Q:Can it be directly installed into a Box Type Substation for use?

A: The dimensions meet the standards for built-in substations and can be integrated with High and Low Voltage Switchgears, allowing for complete integration as needed.
