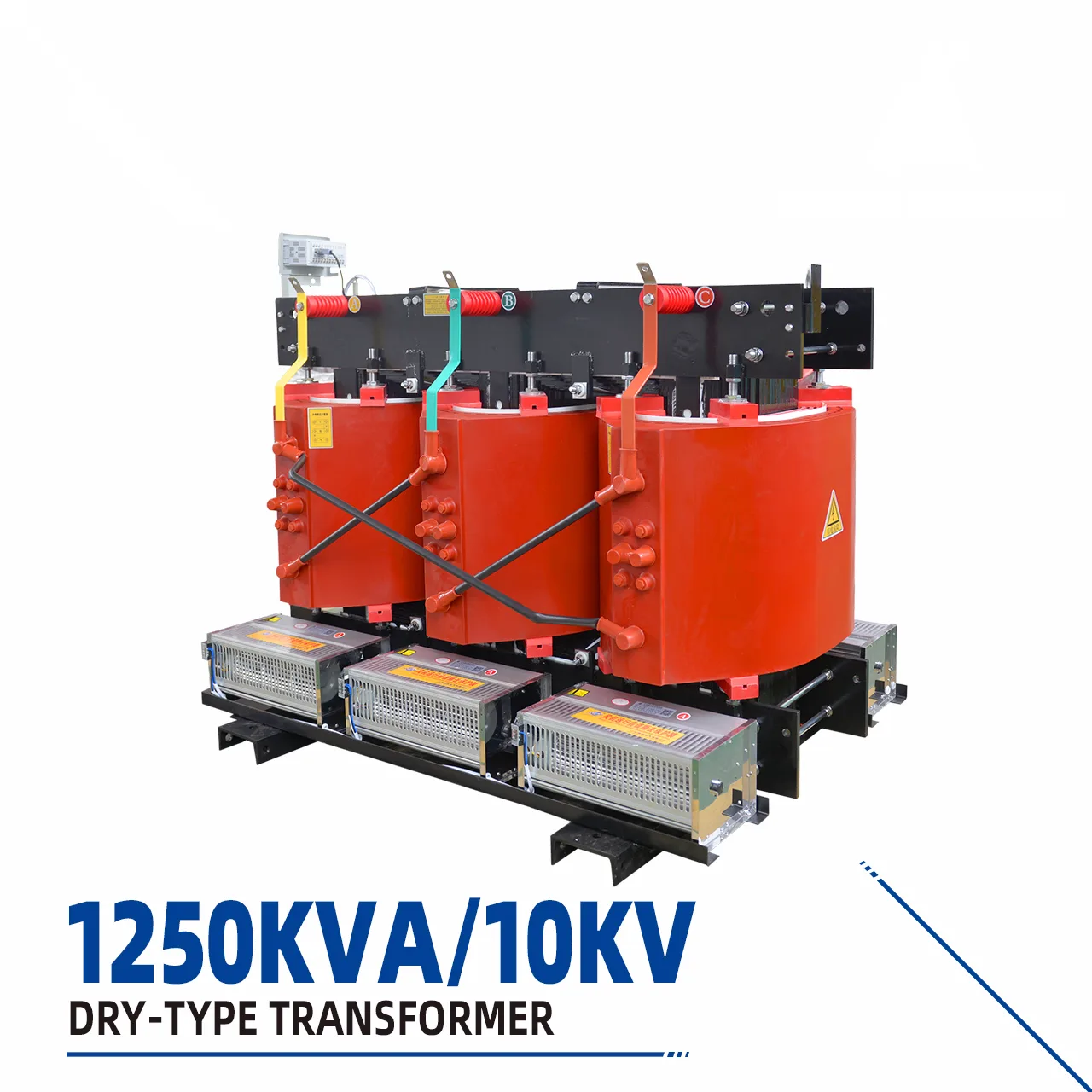

1250KVA 10KV dry-type transformer Pure aluminum

1250 kVA, 10 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. Aluminium-winding option listed. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

1250KVA 10KV Pure Aluminum Winding Dry Type Transformer, Adaptable to Multiple Power Distribution Scenarios



Traditional power distribution projects often face challenges such as fire restrictions and stringent site ventilation requirements when using oil-immersed transformers. Many contractors also face site limitations, making it difficult to meet fire safety regulations. We offer a 1250KVA 10KV pure aluminum winding dry type transformer, optimized for its overall structure using mature casting technology. The equipment eliminates the need for an oil storage chamber, eliminating the risk of oil leakage and fire during operation. It can be directly installed inside buildings or in underground machine rooms. It is commonly paired with high-and-low voltage switchgear and box-type substations for networking, and can also work in conjunction with electric power converters. It is widely used in industrial and commercial power supply, park renovations, and Combined Photovoltaic Substations for power conversion, stably completing voltage rise and fall tasks, continuously ensuring power supply continuity, and reducing site renovation costs.



This dry-type transformer features a pure aluminum winding design with strict raw material control, excellent thermal conductivity, and stable temperature rise control under load. With a compact overall structure and flexible installation, it eliminates the need for a separate isolated equipment room, significantly reducing infrastructure costs. The equipment operates with reasonable noise control, making it suitable for projects in densely populated urban areas and widely applicable in new energy infrastructure and commercial complex power distribution projects. Compared to oil-immersed equipment, daily maintenance is simpler, eliminating the need for oil changes and waste liquid disposal. Its long-term operating cost advantage is significant, making it the preferred Power Distribution Equipment for projects with high fire safety standards.



Product Features

1.Pure aluminum winding structure, stable heat dissipation, suitable for long-term stable load conditions, and compatible with various complete power distribution cabinets.

2.High flame-retardant safety level, no leakage risk, and installation in enclosed indoor spaces is not restricted by strict ventilation conditions.



Tips

Before putting the equipment into operation, be sure to complete the insulation resistance test and clean the surface dust of the windings to ensure stable startup conditions.



FAQ

Q1: Can the 1250KVA 10KV pure aluminum dry type transformer be directly placed in an underground equipment room?

A1: Yes. The product poses no risk of oil ignition and meets indoor installation specifications. Basic ventilation is sufficient; oil-water separation and fire containment dikes are not required as per the Oil Immersed Transformer standard.



Q2: How should the routine maintenance cycle be set?

A2: In normal environments, a routine inspection every six months is recommended, focusing on terminal temperature and surface dust accumulation. In dusty environments, shorter inspection intervals are recommended; no replacement of insulating oil is necessary.



Q3: Can it be used in conjunction with Combined Photovoltaic Substations or Box Type Substations?

A3: Yes. The equipment’s standard parameters are compatible with mainstream High And Low Voltage Switchgear and can form a complete power distribution system with High and Low Voltage Switchgear and Electric Power Converter.



Q4: How is the after-sales warranty period agreed upon?

A4: Warranty service is provided according to industry standards. For non-human-caused damage during the warranty period, technical guidance and parts support are provided, with 24/7 remote technical consultation.
