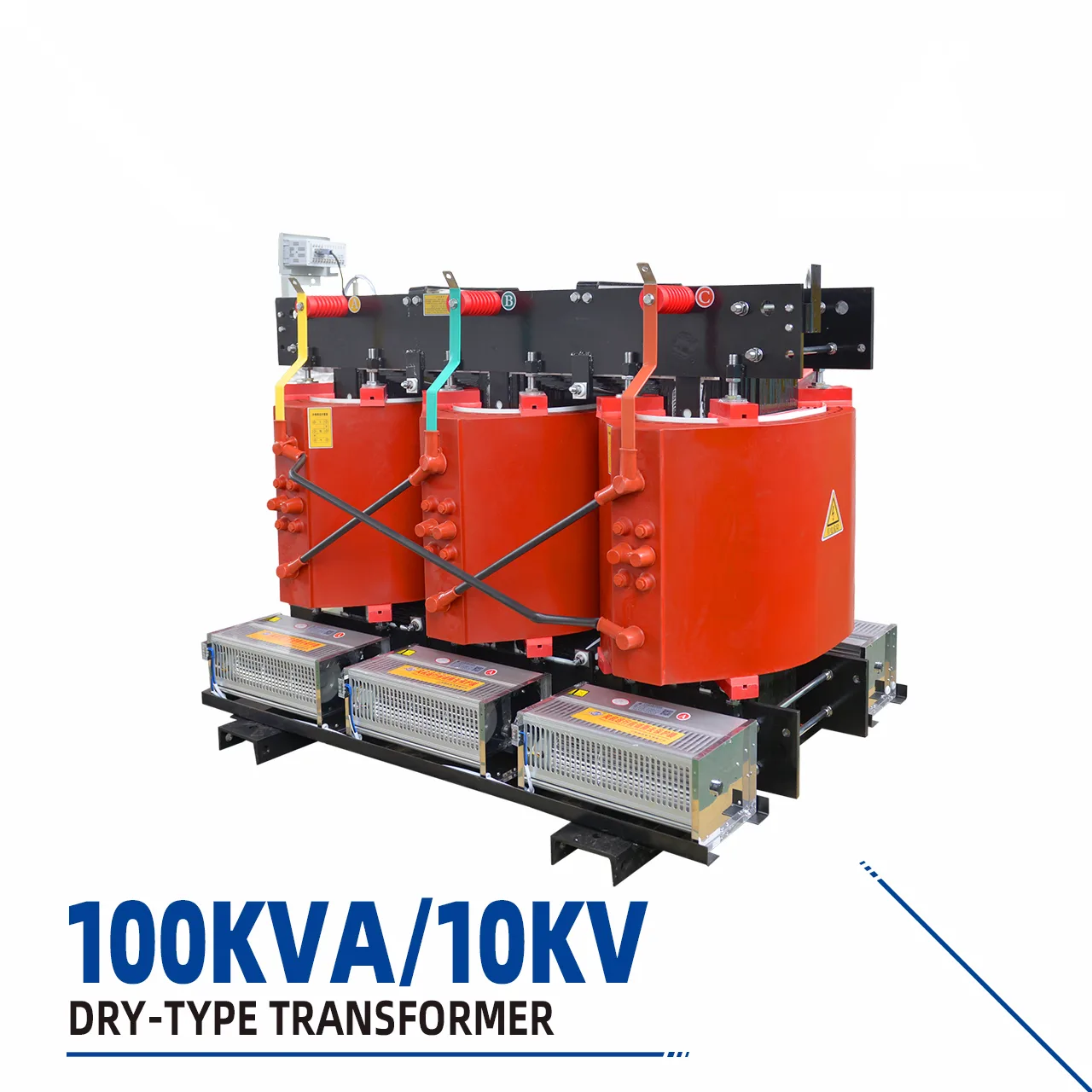

100KVA 10KV dry-type transformer High Efficiency

100 kVA, 10 kV dry-type transformer in the SC (B) 13 Type Dry Power Transformer series. High-efficiency variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

High-Efficiency 100KVA 10KV Dry-Type Transformer: Stable Power Supply Adaptable to Diverse Power Scenarios



Traditional power equipment suffers from high energy consumption, and many sites are limited by environmental constraints, making oil-immersed transformers unsuitable. Continuous equipment wear and tear increases operating costs, and safety hazards are prominent in damp, enclosed spaces. We introduce the 100KVA 10KV High Efficiency Dry-Type Transformer, which reduces no-load and load losses through optimized winding structure. Once deployed, it can significantly reduce electricity costs in the long term, requires no oil cooling, and is suitable for harsh environments such as indoor installations and photovoltaic systems.



This 100KVA 10KV dry-type transformer, as a mainstream power distribution device, is often paired with a high-and-low voltage switchgear for grid connection. It can independently handle basic power distribution tasks in industrial and commercial plants or be integrated into a box-type substation for power conversion. In photovoltaic projects, it can work in conjunction with an Electric Power Converter and is an indispensable core device for building Combined Photovoltaic Substations. The equipment boasts outstanding safety during operation, eliminating the risk of oil leaks and fires. It requires significantly less maintenance and is widely used in commercial buildings, data centers, new energy power plants, and municipal power supply projects. Compared to standard models of the same specifications, the energy savings from long-term operation of the high-efficiency version help investors shorten the payback period.



Product Features

Low Loss and High Efficiency Operation: Based on an improved core and winding design, meeting High Efficiency standards, it effectively reduces energy waste during continuous operation, resulting in significant long-term economic benefits.

Safe and Flame-Retardant Structure: The Dry Type Transformer contains no flammable insulating oil, allowing direct installation in enclosed indoor locations, reducing fire safety management pressure.



Tips

Ensure adequate air circulation in the installation area to prevent dust accumulation on the equipment surface, which can impair heat dissipation efficiency.



FAQ

Q:Can this 100KVA 10KV dry-type transformer be directly installed in an underground computer room?

A:Yes. The equipment has no leakage risk and is more suitable for enclosed underground computer rooms than oil-immersed transformers. Only ensure adequate ventilation to meet heat dissipation requirements.



Q:What routine maintenance operations are required?

A:Regularly clean the casing of accumulated dust and check the tightness of the wiring terminals. No need to replace the insulating oil; the routine inspection process is simple.



Q:Can it be used with related equipment in photovoltaic power plants?

A:Yes, it can be used in conjunction with the Electric Power Converter and is compatible with the overall power supply system setup for Combined Photovoltaic Substations.



Q:What is the after-sales warranty period?

A:Standard warranty service is provided upon delivery. For non-human-caused failures, we provide technical guidance and spare parts supply support.
