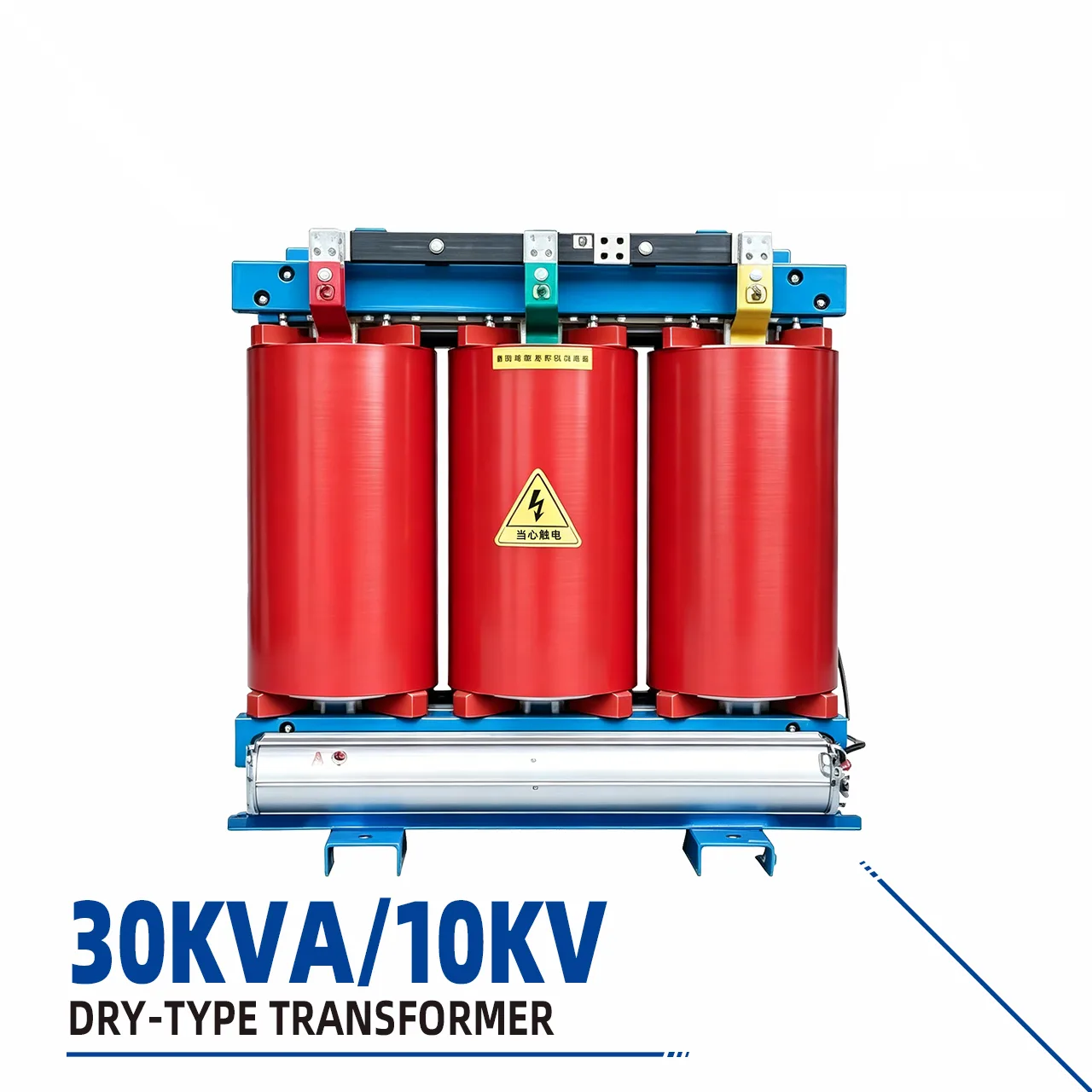

30KVA 10KV dry type transformer Pure copper

30 kVA, 10 kV dry-type transformer in the SC (B) 10 Type Dry Power Transformer series. Copper-winding option listed. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details

30KVA 10KV Pure Copper Dry-Type Transformer: Dedicated Stabilizing Equipment for Industrial Power Distribution



Currently, in the power distribution industry, oil-immersed transformers suffer from common pain points such as flammability and explosiveness, cumbersome operation and maintenance, and limited space, making them unsuitable for indoor and precision power distribution scenarios. Many companies face significant equipment safety hazards and insufficient power supply stability in small power plants and industrial/commercial power distribution upgrades. To address these industry challenges, we have launched a 30KVA 10KV pure copper dry-type transformer. Utilizing pure copper winding technology and a dry-type insulation structure, it is compatible with various power supply systems. This product can be perfectly paired with Box Type Substations and High and Low Voltage Switchgears, and is also compatible with new energy Power Distribution Equipment such as Electric Power Converters and Combined Photovoltaic Substations. It is widely used in industrial and commercial buildings, small substations, and photovoltaic power supply scenarios. In practical applications, the equipment boasts excellent insulation performance, poses no risk of combustion or explosion, exhibits low operating losses, and provides stable power supply. It effectively reduces the probability of equipment failure and subsequent maintenance costs, offering safe and long-term power distribution assurance for various power systems.



Core Product Features

1. Low-Consumption and Energy-Saving Pure Copper Winding: The product uses high-purity copper coil windings, offering superior conductivity compared to aluminum wire equipment. This significantly reduces heat loss during operation, effectively saving energy over long periods. It is suitable for high-frequency, long-duration industrial power distribution operations, greatly improving power supply accuracy and stability.



Usage Tips

1. Applicable Scenarios and Standard Installation: This dry-type transformer is suitable for indoor and in-home substations and photovoltaic applications. It should be installed away from humid, dusty, and corrosive environments. During installation, a safe distance must be maintained from high and low voltage power distribution equipment to ensure proper ventilation and heat dissipation, extending the equipment’s lifespan.



Frequently Asked Questions (FAQ)

Q1: What are the core advantages of this 30KVA 10KV dry-type transformer compared to the Oil Immersed Transformer?

A1: The core advantages are safety and no hidden dangers, no need for daily oil leakage maintenance, and a dry-type structure that is non-flammable and non-explosive. It is suitable for indoor and densely populated industrial and commercial power distribution scenarios, while oil-immersed equipment is only suitable for outdoor open spaces and requires regular checks of oil level and quality, resulting in higher operation and maintenance costs.



Q2: Can the product be used in photovoltaic power plants and High And Low Voltage Switchgear?

A2: Yes. This equipment can seamlessly match Box Type Substations, High and Low Voltage Switchgears, and is compatible with the power distribution needs of Electric Power Converters and Combined Photovoltaic Substations. It is a core supporting equipment for small and medium-sized photovoltaic power plants and industrial power distribution upgrades.



Q3: What are the key points for daily maintenance of the equipment?

A3: Daily maintenance is simple. No need to replace the insulating oil; only periodic cleaning of dust on the equipment surface, checking the tightness of the wiring terminals, and ensuring unobstructed ventilation channels are required, significantly reducing manual maintenance costs.



Q4: What does the product’s after-sales guarantee include?

A4: The equipment undergoes full performance testing before leaving the factory and comes with a formal warranty service. During the warranty period, non-human-caused damage can be repaired and parts replaced free of charge. We also provide full support services such as technical installation guidance and troubleshooting.
