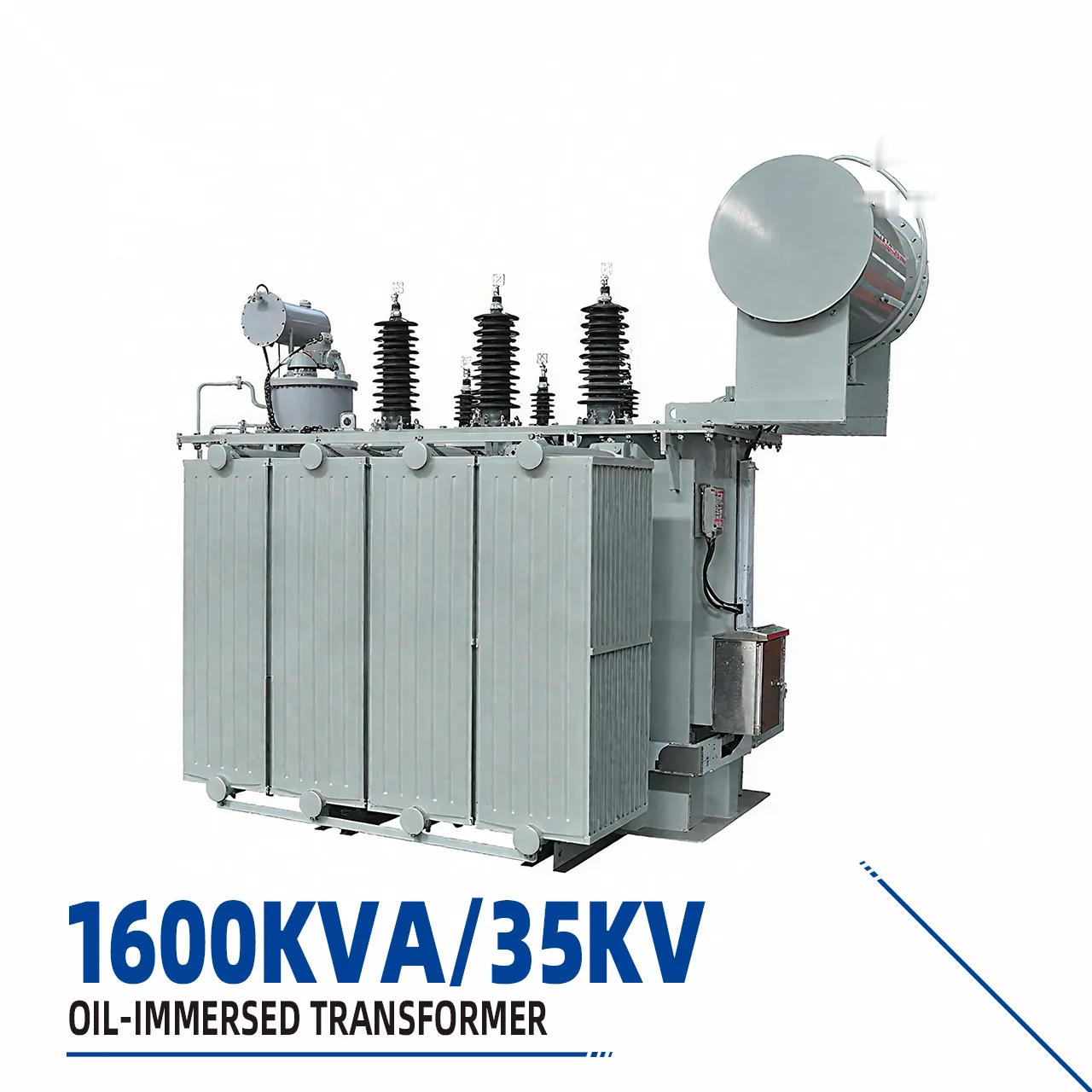

1600KVA 35KV Oil-immersed transformer High Efficiency

1600 kVA, 35 kV oil-immersed transformer in the 35kv On-load Tap-changing Transformer series. High-efficiency variant. Confirm capacity, voltage ratio, winding and insulation materials, tap arrangement, losses, impedance, frequency, environmental conditions, testing and applicable standards against the project specification before ordering.

Manufacturer-supplied product information: Jiangsu Huayu Electric Co., Ltd.

Product Details



High-Efficiency 1600KVA 35KV Oil-immersed Transformer Adapted to Multiple Power Transmission Scenarios



Currently, the power infrastructure industry generally faces problems such as high energy consumption and excessive long-term operating losses in Power Distribution Equipment. Various industrial and mining substations and photovoltaic projects often experience increased operating costs due to outdated power distribution equipment. Many purchasers, when selecting equipment, worry about both substandard Energy Efficiency leading to increased electricity costs and poor compatibility, making it impossible to integrate with existing High And Low Voltage Switchgear and Box Type Substations. To address these challenges, we have launched the 1600KVA 35KV High Efficiency Oil Immersed Transformer, which balances energy-saving performance with universal compatibility. It can be flexibly combined with Dry Type Transformers and Electric Power Converters for integrated power distribution systems, and can also be directly used with Combined Photovoltaic Substations. The equipment adopts a low-loss iron core and insulated oil circuit structure, with no-load and load losses far below industry standards. Long-term use can significantly reduce power consumption costs. It is stably adaptable to various power supply scenarios such as mines, industrial parks, photovoltaic power stations, and municipal substations, continuously ensuring the stable operation of the transmission system and reducing equipment maintenance frequency and downtime losses.



This 1600KVA 35KV Oil Immersed Transformer has a rated capacity of 1600KVA and a high-voltage side of 35KV. Its core advantages focus on high efficiency, energy saving, and universal adaptability. As a core unit of complete power equipment systems, it can be installed independently in outdoor substation areas or integrated into box-type substations for complete operation. The internal insulation system has undergone multiple withstand voltage tests, and its operating noise control meets standards, making it suitable for high-power electric power converters. In photovoltaic projects, when linked with Combined Photovoltaic Substations, it can smoothly regulate the output voltage on the photovoltaic side, compensating for fluctuations in solar power generation. In the overall power distribution planning of the plant area, it can be paired with a Dry Type Transformer of the same specification for zoned power supply, and combined with a High And Low Voltage Switchgear to achieve segmented line protection, improving the overall fault tolerance of the power grid. The equipment uses corrosion-resistant steel and high-performance insulating oil as raw materials, resulting in a longer service life in outdoor environments. It eliminates the need for frequent replacement of core consumables, making it suitable for medium- to long-term power engineering bulk procurement needs.



Product Features

Ultra-low loss, high-efficiency core design, as the core configuration of the High Efficiency Oil Immersed Transformer, significantly reduces energy consumption during long-term operation, making it suitable for long-term uninterrupted power supply scenarios.

Standardized interfaces of all specifications allow seamless connection to various power equipment such as High And Low Voltage Switchgear and Combined Photovoltaic Substations, requiring no additional modifications during engineering assembly.



Usage Tips

Before commissioning, a comprehensive test of the insulating oil level and sealing is required. When using with a Box Type Substation, allow sufficient ventilation and heat dissipation space to prevent high-temperature aging of the oil circuit.



FAQ (Frequently Asked Questions)

Q: Can this 1600KVA 35KV Oil Immersed Transformer be used with photovoltaic (PV) systems?

A: Fully compatible. The voltage regulation range of the equipment can match the output of Combined Photovoltaic Substations. It works with an Electric Power Converter to complete AC/DC voltage stabilization, making it a mainstream transformer for PV power plants.



Q: What is the daily maintenance frequency for oil-immersed equipment? Is it more complicated compared to a Dry Type Transformer?

A: Under normal operating conditions, oil quality and seals only need to be inspected every six months. Compared to a Dry Type Transformer, only an additional oil quality inspection is required. The overall maintenance process is simple, and the manufacturer can provide corresponding inspection guidance.



Q: What does the after-sales service cover?

A: The entire unit comes with a standard warranty period and a complete set of inspection reports. If compatibility issues arise with High and Low Voltage Switchgear or Box Type Substations, our technical team can provide remote or on-site commissioning services.
