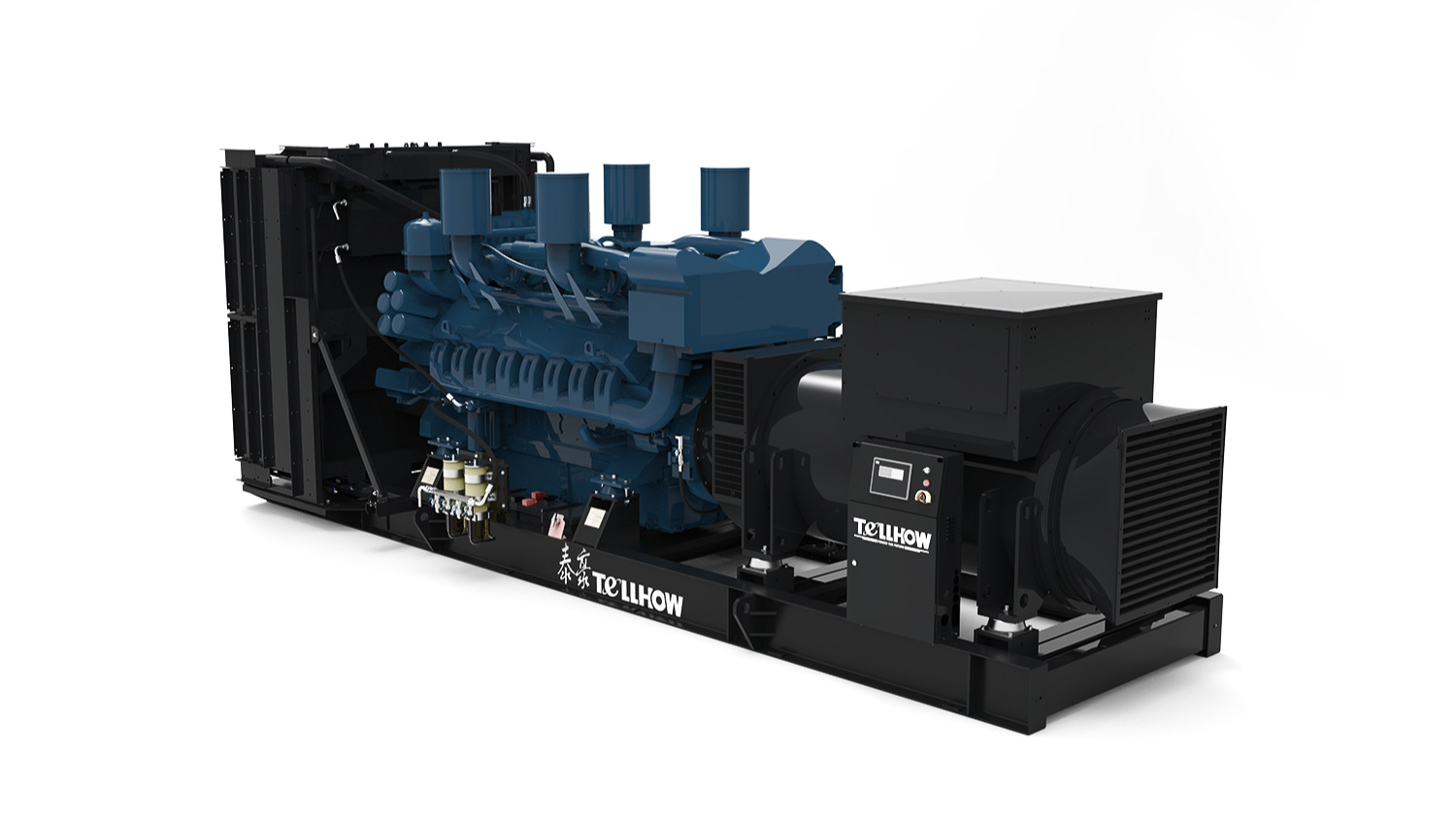

Tellhow THLM Diesel Generator Sets · 50 Hz
22 configurations from the supplied technical catalog. View the model-by-model specifications below.
收录 22 组配置，详情页可查看逐型号技术参数。
Specifications and configuration confirmed to project requirements
Submit parameters / Request a solution
← Back to product series TECHNICAL INFORMATION
Product Description
Explore 22 source-listed diesel generator configurations. Compare the model, output and engine or equipment details below; final selection follows project requirements.
Model specifications
22 configurations · scroll horizontally to view all fields
| Generator model | Prime output (kW) | Standby output (kW) | Dimensions (mm, L×W×H) | Weight (kg) | Engine model | Cylinders / layout | Displacement (L) | Fuel consumption (g/kWh) | Lubricant capacity (L) | Coolant capacity (L) |
|---|---|---|---|---|---|---|---|---|---|---|
| THLM515 | 515 | 560 | 3850×1678×2082 | 5060 | 12V2000G25 | 12/V | 23.88 | 203 | 77 | 164 |
| THLM640 | 640 | 700 | 3864×1678×2082 | 5290 | 12V2000G65 | 12/V | 23.88 | 202 | 77 | 164 |
| THLM730 | 730 | 800 | 4280×1650×2310 | 6410 | 16V2000G25 | 16/V | 31.84 | 198 | 102 | 200 |
| THLM800 | 800 | 880 | 4293×1624×2307 | 6140 | 16V2000G65 | 16/V | 31.84 | 198 | 102 | 200 |
| THLM910 | 910 | 1000 | 4800×1936×2180 | 8060 | 18V2000G65 | 18/V | 35.82 | 202 | 130 | 232 |
| THLM1000 | 1000 | 1100 | 4460×1922×2323 | 6420 | 18V2000G26F | 18/V | 40.2 | 189 | 130 | 232 |
| THLM1320 | 1320 | 1450 | 6150×2200×2515 | 12900 | 12V4000G23F★ | 12/V | 57.2 | 189 | 260 | 520 |
| THLM1470 | 1470 | 1610 | 6150×2200×2515 | 12900 | 12V4000G63F★ | 12/V | 57.2 | 193 | 260 | 570 |
| THLM1670 | 1670 | 1800 | 6620×2200×2515 | 15340 | 16V4000G23F★ | 16/V | 76.3 | 192 | 300 | 685 |
| THLM1800 | 1800 | 2000 | 6820×2200×2515 | 15820 | 16V4000G63F★ | 16/V | 76.3 | 191 | 300 | 730 |
| THLM2000 | 2000 | 2200 | 7300×2555×2631 | 18150 | 20V4000G23F★ | 20/V | 95.4 | 192 | 390 | 795 |
| THLM2240 | 2240 | 2460 | 7450×2555×2631 | 18500 | 20V4000G63F★ | 20/V | 95.4 | 190 | 390 | 825 |
| THLM2400 | 2400 | 2640 | 7660×2555×2631 | 19100 | 20V4000G63LF★ | 20/V | 95.4 | 192 | 390 | 850 |
| THLM1100 | 1100 | 1200 | 5829×2200×2515 | 13130 | 12V4000G14RF | 12/V | 57.2 | 192 | 260 | 520 |
| THLM1320 | 1320 | 1450 | 6150×2200×2515 | 12900 | 12V4000G14F | 12/V | 57.2 | 189 | 260 | 520 |
| THLM1470 | 1470 | 1610 | 6150×2200×2515 | 12900 | 12V4000G24F | 12/V | 57.2 | 192 | 260 | 570 |
| THLM1670 | 1670 | 1800 | 6620×2200×2515 | 15340 | 16V4000G14F | 16/V | 76.3 | 188 | 300 | 685 |
| THLM1800 | 1800 | 2000 | 6820×2200×2515 | 15820 | 16V4000G24F | 16/V | 76.3 | 189 | 300 | 730 |
| THLM2000 | 2000 | 2200 | 7300×2555×2631 | 18150 | 20V4000G14F | 20/V | 95.4 | 192 | 390 | 795 |
| THLM2240 | 2240 | 2460 | 7450×2555×2631 | 18500 | 20V4000G24F | 20/V | 95.4 | 190 | 390 | 825 |
| THLM2400 | 2400 | 2640 | 7660×2555×2631 | 19100 | 20V4000G34F | 20/V | 95.4 | 192 | 390 | 850 |
| THLM2600 | 2600 | 2860 | 7660×2555×2631 | 20100 | 20V4000G44F | 20/V | 95.4 | 193 | 390 | 870 |
